ABC Hall Anchor

ABC Hall anchors are modern standard stockless rotating fluke anchors, which are available in three types according to national standards: Type A (rectangular stem), Type B (circular stem), and Type C (rectangular short stem). The folding angle of the A and B types is 45 °± 1 °, and the C type is 38 °± 1 °.

They are often used by small boats and yachts due to their lightness and versatility. Hall anchors are also commonly used in emergency situations where temporary anchor points need to be quickly set to stabilize ships, and also used in professional fields such as ocean research or underwater construction projects.

Main Feature:
Application: small boat, yacht
Weight: 50kgs to 46000kgs
Certificate: CCS,BV, ABS, DNV, GL, LR, RINA, NK, KR, RS etc.
Material: ZG200-400
Surface Treatment: Black Tarred Painting or Hot Dip Galvanized

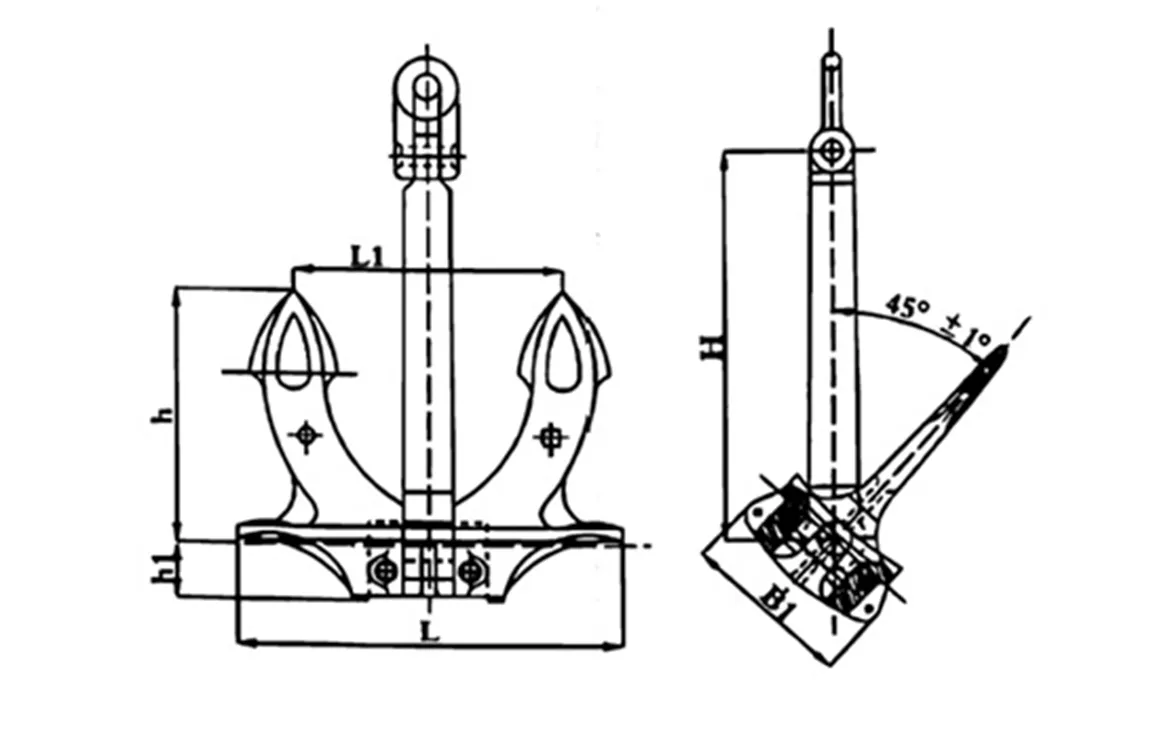

Technical Parameter:

Product details:
ABC hall anchor, also known as the mountain shaped HHP anchor, is a type of stockless anchor whose claws can rotate freely and form a certain angle with the anchor shaft. The anchor head and claws of this type of anchor are cast as one piece. The anchor passes through the anchor head and is locked by one anchor shaft pin and two anchor head transverse pins, allowing the anchor head and anchor claw to rotate forward or backward by 45 degrees around the anchor shaft pin.

Product Qualification:

Our ABC Hall Anchor is refined from high-quality marine cast carbon steel ZG200-400C, using advanced processes and treatment methods. All products meet the certification standards of China Classification Society.
CCS,BV, ABS, DNV, GL, LR, RINA, NK, KR, RS certification can be provided according to customer requirements.
