Free Fall Rescue Boat

Trademark	OEM
Type	Torpedo Boat
Seater	10-70p
Specification	6.50M*2.32M*1.15M
Material	FRP
Application	Lifesaving,Safe, Help
Max loading weight	single:250kg /75lbs Double:400kg/75lbs
Color	Orange(Customized color accepted)
HS Code	8906901000
Production Capacity	500000/Year
Standard	Solas Standard
Feature	Light Weight
Transport Package	Standard Export Package

Different sizes

Different modle

We provide a series of Free Fall Lifeboat for ocean-going tanker and cargo.
All the Free Fall Lifeboat have their own advantages, can meet customer needs of different projects.
Our new generation of Free Fall Lifeboat can be complied with LAS Code and MSC.81(70) new regulation. It can be meet the newest requirement thank the weight of person should be 82.5kg.In addition, there is enough space of sheering cabin inside lifeboat, you can sit in the lifeboat comfortably and operate conveniently,even if you are 2m tall and 100kg weight.

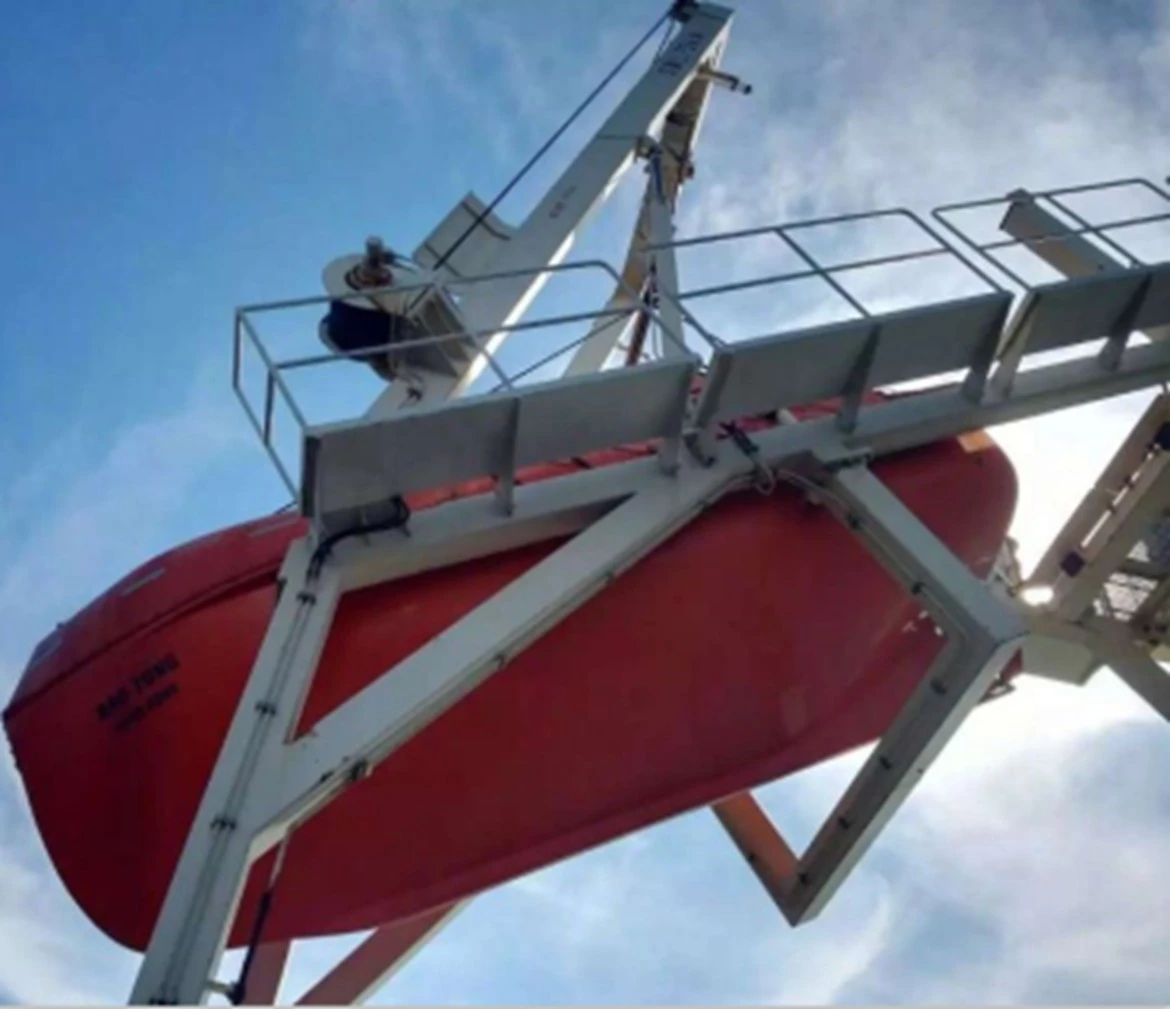

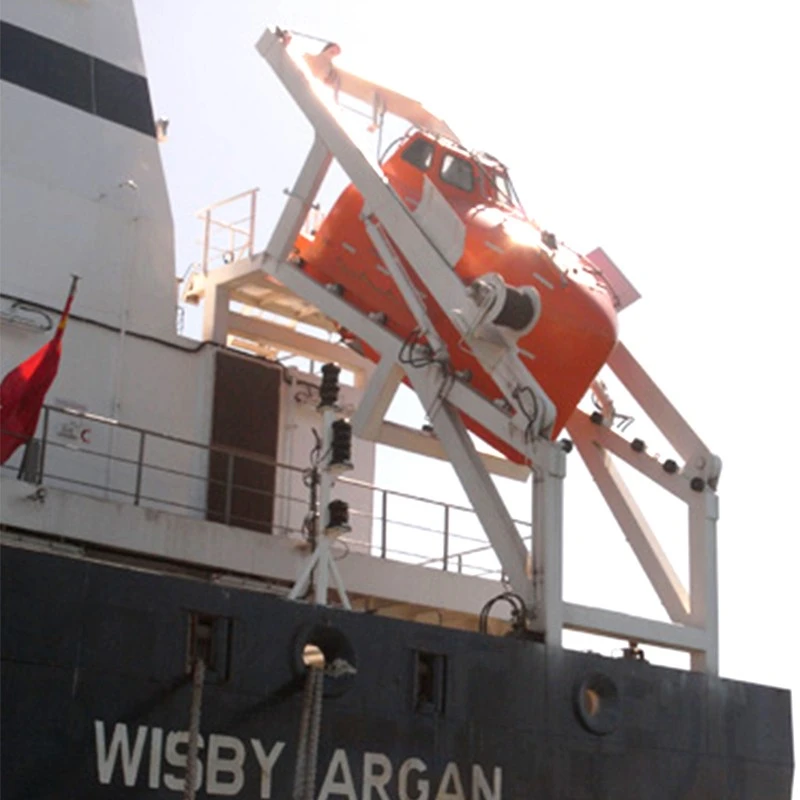

Free Fall System:

Launching Rail: High-strength steel 滑道 (yield strength ≥355 MPa), inclined at 35°–45°, enabling descent speeds of 4–6 m/s .

Shock7 Absorption: Hydraulic dampers at the rail end reduce impact force to ≤15 kN upon water entry .

Self-Ri9ghting Capability: Automatically rights within 15 seconds when capsized, with a maximum roll angle of 180° .

√ Graceful Design Line

√ Simple to use for Free Fall Lifeboat

√ Convenient Daily maintenance with the platform

√ Small Space required,the safe area under the boat is free to pass

√ Fast Escape,Free Fall and escape the crash at full Speed.

√ Design and test based on the latest IMO/SOLAS Rules(MED 96/98 EC)

Seat design can meet the weight of 100Kg per person

Structural Materials and Design

Hull Material: Constructed from marine-grade aluminum alloy (5083-H116) or fire-retardant fiberglass-reinforced plastic (FRP).

Aluminum Alloy: Corrosion-resistant (salt spray resistance ≥1,000 hours), tensile strength 210 MPa, density 2.65 g/cm³, and weight per square meter 20% lighter than steel .

FRP2: Flame-retardant resin complies with FTP Code Part 1 (burning rate ≤10 mm/min), impact strength 180 kJ/m² .

Enclose5d Structure: Fully sealed cabin with double-layer polycarbonate windows (impact resistance ≥5 kN) and positive pressure ventilation system (air change rate ≥10 times/hour) .

Interna6l Configuration:

Shock-Absorbing Seats: Molded polyurethane seats with 4-point harnesses (breaking strength ≥12 kN) and energy-absorbing cushions (deceleration ≤15 g during landing) .

Emerg7ency Systems: Built-in CO₂ fire suppression system (discharge time ≤10 seconds), 24-hour air supply, and GPS emergency positioning beacon (accuracy ≤10 meters) .

Free Fall Lifeboat Suitable for:
* Various oil platforms
* FPSO
* Bulk-cargo Ship or Chemical Cargo Ship
* LNGC
* Various Working Ships
* Maritime Training Center
We understand the client's demand,even if you need the lifeboat with 100Kg of per person,we can also design elaborately for
you,make the totally enclosed lifeboat which meets your expectation.

Primary Uses:

Rapid evacuation from tankers, dry cargo ships, and offshore platforms during emergencies (e.g., fire, sinking) .

Rescue 5missions in high-risk environments, with watertight integrity tested at 0.5 bar pressure (equivalent to 5 meters underwater) .

Recover6y System:

Retrieved via hydraulic davit with a maximum lifting capacity of 70 kN and hoisting speed ≥3 m/min .

Equippe11d with anti-pendulum compensation to stabilize recovery in Sea State 5 (wave height 2.5–4.0 m) .

Environ10mental Performance:

Operates in temperatures from -20°C to +60°C, with thermal insulation maintaining cabin temperature at 18°C–25°C for 8 hours .

Noise l8evel ≤85 dB(A) inside the cabin during operation, compliant with ISO 6954 standards .
