Aluminum Side Scuttle

Send Inquiry

Product Introduction

Aluminum Side Scuttle is a side porthole window made of high-quality aluminum alloy for ocean going vessels. It has the characteristics of lightweight, corrosion resistance, and high strength, and is usually used for lighting or ventilation windows on the side of ships. It needs to be waterproof and good resistant to salt spray corrosion. Aluminum Side Scuttles have multiple styles to choose from: Openable or fixed With or without storm cover Heavy, medium or light type Bolted or welded installation.
Aluminum side scuttles also be called marine aluminum portholes. We can customize various specifications of portholes, including aluminum, copper, and steel. Please contact us to learn more about porthole sizes and styles.

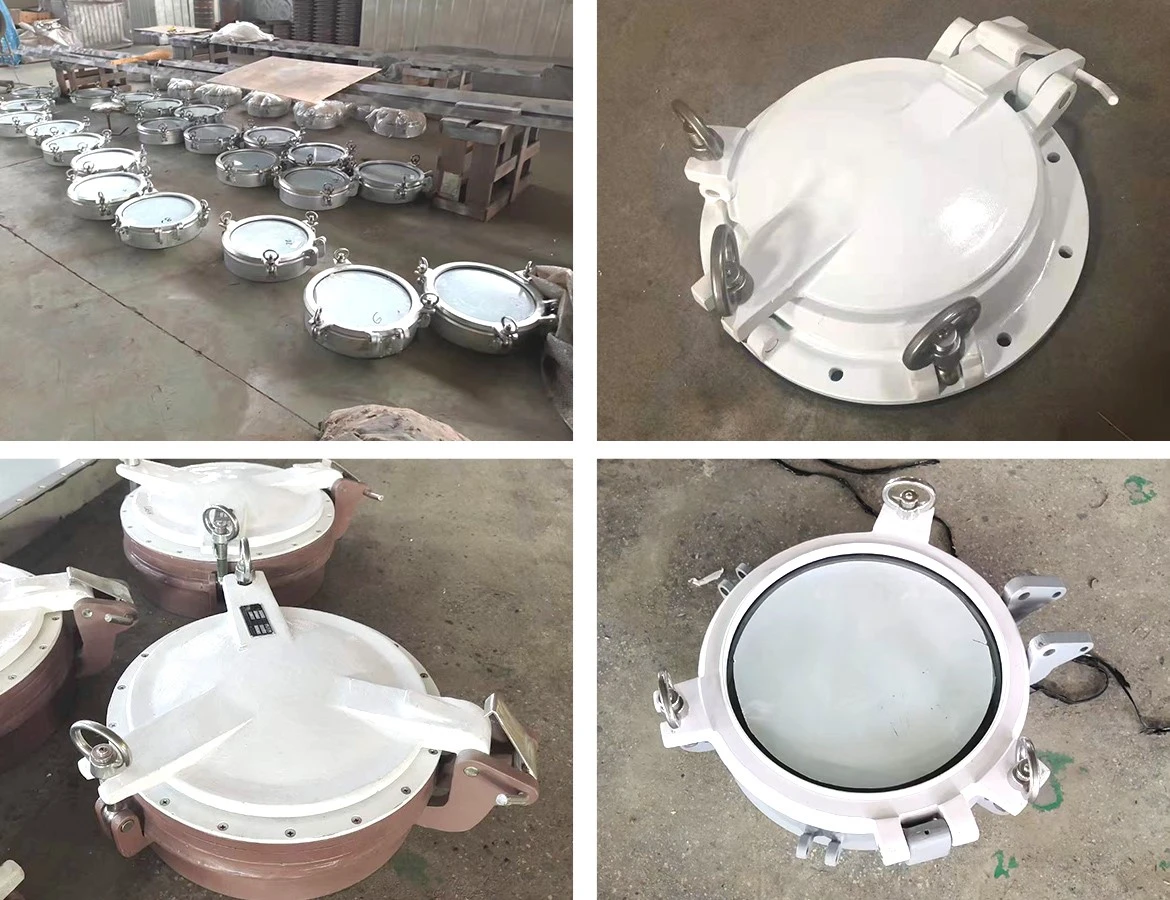

1 steel Side Scuttle without deadlight covers

Main Features

Type: side scuttles for ships
Openable,storm cover optional
Standard: CB/T 14413-1993
Certificate: CCS, BV, LR, ABS, DNV

Dimension

5 Aluminum Side Scuttle drawing

TYPE		SIZE OF LIGHT D	D1	D2	D3	D5	D4	h	t	₡	QUT.OF CLIPS		BOLT		SIZE OF B.H. OPENING
TYPE		SIZE OF LIGHT D	D1	D2	D3	D5	D4	h	t	₡	DEADLIGHT	GLASS HOLDER	Whorl	QUT	SIZE OF B.H. OPENING
B	LB RB	200	245	204	250	350	310	155	8	45°	2	3	M12	8	253
		250	295	254	305	400	364	182	8	48°	2	3	M16	8	308
		300	350	304	360	450	414	207	10	31°	3	3	M16	12	363
		350	400	354	410	500	464	232	12	32º	3	3	M16	12	413
		400	450	404	460	550	514	257	12	31°	3	3	M18	12	463
		450	500	454	510	600	564	282	15	31°	3	3	M20	12	513
