Hydraulic Sliding Watertight Door
Technical Parameter
Custom Boat Door Sizes Available
|
SIZE OF DOORWAY |
SIZE OF B.H.OPENING |
SIZE OF OUTLINE |
THICKNESS |
WEIGHT |
||
|
600X1500X100 |
700x1600x150 |
800X1700X200 |
6 |
8 |
145 |
166 |
|
600X1600X100 |
700x1700x150 |
800X1800X200 |
6 |
8 |
154 |
176 |
|
700X1500X100 |
800x1600x150 |
900X1700X200 |
6 |
8 |
167 |
191 |
|
700X1600X100 |
800x1700x150 |
900X1800X200 |
6 |
8 |
174 |
199 |
|
700X1700X100 |
800x1800x150 |
900X1900X200 |
6 |
8 |
183 |
210 |
|
800X1500X100 |
900x1600x150 |
1000X1700X200 |
8 |
208 |
||
|
800X1600X100 |
900x1700x150 |
1000X1800X200 |
8 |
223 |
||
|
800X1700X100 |
900x1800x150 |
1000X1900X200 |
8 |
249 |
||

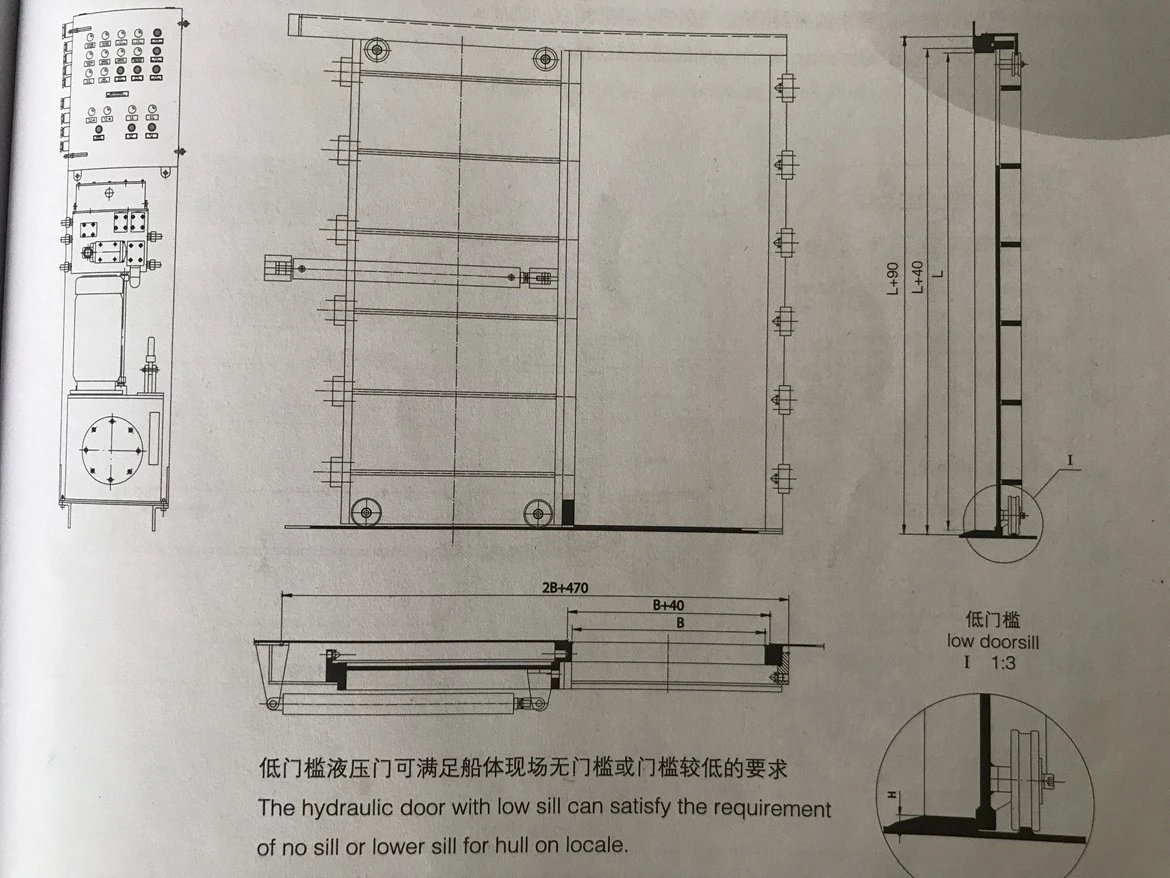

product Introduction
The hydraulic sliding watertight door is always used for working vessels or ships. It includes three parts, mechanism, hydraulic and electric.
The mechanism part includes door fame, door plate, guide roller and cylinder braket. The hydraulic part consists of hydraulic pump unit (includig motor, oil pump, electromagnetism change valve, throttle, overflow valve, one way valve,level switch, high-low pressure relay, low pressure relay, level controller, etc.), oil cylinder, hand pump,hand change valve, accumulator and pressure guage, etc. Ad the electic part includes start up alarm box, alarm lamp and bell, limit switch and button box.
Meet IMO, SOLAS requirements
Normal pump unit can be separately installed beside the door or other position.
Specification
|
Size of doorway |
Size of B.H. Opening |
Size of outline |
Opening direction |
Weight |
|
600*1200 |
800*1400 |
1780*1500 |
L |
870 |
|
700*1400 |
900*1600 |
1860*1700 |
990 |
|
|
800*1600 |
1000*2000 |
2160*2100 |
1100 |
|
|
900*1800 |
1100*2100 |
2360*2200 |
1210 |
|
|
1000*2000 |
1200*2200 |
2560*2300 |
1350 |
|
|
1200*2000 |
1400*2200 |
2880*2300 |
1510 |
Application: hydraulic sliding watertight door can be used for engine&steering gear rooms with watertight bulkhead Type: Integrated / Normal Option: A0 / A60 Class Fireproof Material: steel Max. Pressure:0.1Mpa Available certificates: LR-BV-DNV-GL-ABS-NK-KR-RMRS-CCS

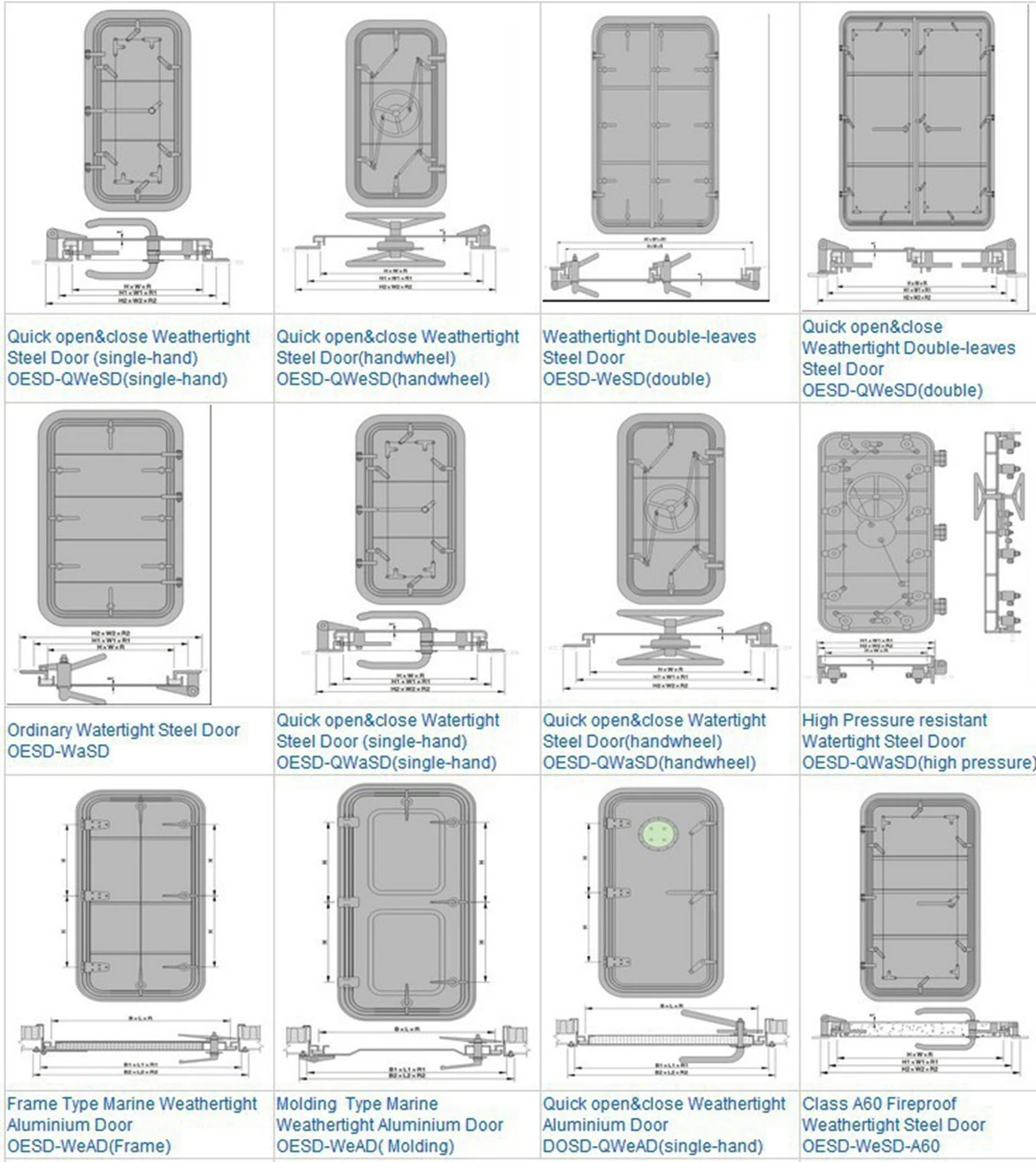

Other Marine Door Types we can provide:
Full selection of door specifications are available for bellow main marine doors
* Waterproof door:Marine weathertight single-leaf steel or aluminium door,Quick acting steel weathertight door,Hydraulic sliding weathertight door.
* Fireproof door:A0,A15,A30,A60,B0,B15 fire class steel door.
* Gastight door:Inflation gastight door,Mechanical pressure clamp gastight door.
* Sliding door:aluminum sliding door, Hydraulic sliding door.
* Hollow door:aluminium cabin hollow door,G.R.P cabin hollow door.
* Related products like marine window and marine hatch cover can also be provided.
Factory:
Packing and shipping:
Quality Assurance and Service
1. Have a complete rigorous management, production and inspection processes to control the quality and avoid detail mistake
2. Design and produce ability
3. Rigorous inspection including incoming inspection, flaw detection etc., and double check is a must.
4. Advanced factory facility ensure
5. Response to any inquiry within 24 HRS with design or efficient solution from our engineer or tech supporter.
6. Provide professional customization service according to client's requirements
7. on time delivery, as we have rigorous production schedule and profession follow-up process
8. Moderate price and professional service
If you have any comment or inquiry, please feel free to contact us for more details.
